Sheet Metal Fabrication
Fiber Laser Cutting Machine
光纤激光切割机
A professional machine design with novel appearance and many patented technologies, offering high speed, small slit, smooth section, easy operation and low energy consumption, suitable for continuous processing in large quantities.
- High speed, small slit, smooth section, easy operation and low energy consumption.
- Suitable for continuous processing in large quantities.
- High torque servo motor for more stable and smooth cutting operation.
Interested in this machine? Send us your requirements and we will reply with details and a quotation.
Open-Type Double-Drive Fiber Laser Cutting Machine 敞开式双驱光纤激光切割机
- Professional machine design, novel appearance and many patented technologies.
- Dual cutting head optional: smoother cut surface and complete cutting section.
- High torque servo motor: more stable and smooth cutting operation.

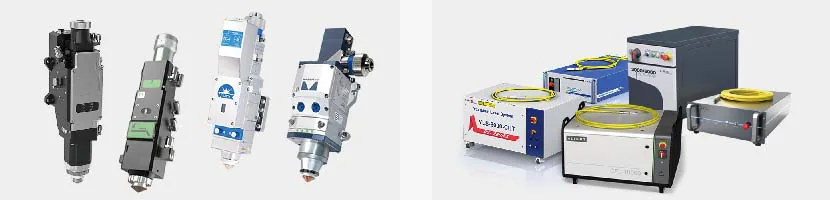

- Brand laser head: brand automatic focusing cutting head automatically and accurately adjusts the focus according to the thickness of the material, suits a variety of focal lengths, shortens perforation time, improves perforation quality and cuts at high speed.
- Brand fiber laser: air-cooled compact structure design with semiconductor fiber as the laser generation medium; green and environmentally friendly, simple mechanical structure, constant optical path, basically maintenance-free, stable cutting performance.
- Steel plate bed frame, as sturdy as a mountain: good shock absorption and small deformation ensure long-term stability and counteract the forces of frequent high-speed reversing and high acceleration and deceleration.
| Model | Processing range (mm) | X-axis travel (mm) | Y-axis travel (mm) | Z-axis travel (mm) | Laser power | X/Y axis positioning accuracy | X/Y axis repeated positioning accuracy | Max. positioning speed |
|---|---|---|---|---|---|---|---|---|
| MF-3015 | 3000*1500 | 1560 | 3080 | 150 | 3000w/6000w/12000w | ≤±0.03mm/min | ≤±0.02mm/min | 100m/min |
| MF-4015 | 4000*1500 | 1560 | 4080 | 150 | 3000w/6000w/12000w | ≤±0.03mm/min | ≤±0.02mm/min | 100m/min |
| MF-4020 | 4000*2000 | 2060 | 4080 | 150 | 3000w/6000w/12000w | ≤±0.03mm/min | ≤±0.02mm/min | 100m/min |
| MF-6020 | 6000*2500 | 2560 | 6080 | 150 | 3000w/6000w/12000w | ≤±0.03mm/min | ≤±0.02mm/min | 100m/min |
| MF-8025 | 8000*2500 | 2560 | 8080 | 150 | 3000w/6000w/12000w | ≤±0.03mm/min | ≤±0.02mm/min | 100m/min |

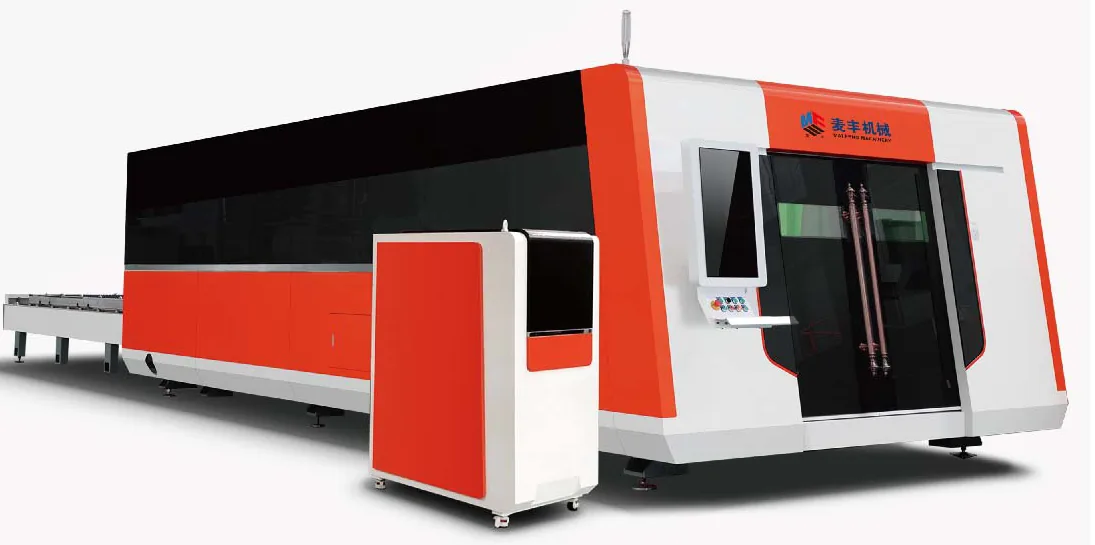

Exchange Worktable Fiber Laser Cutting Machine 交换台大包围光纤激光切割机
- New closed design with fast double-table exchange; fast, small slit, smooth section, easy operation, low energy consumption, suitable for large quantities of continuous processing.
- Upgraded touch display screen with full LCD CNC control system.
- High torque servo motor: more stable and smooth cutting operation.
- Cypcut and Hyp Tronic laser cutting system: intelligent visual control system with an easier-to-understand interface; laser power, gas type and pressure can be adjusted intuitively; intelligent edge searching and automatic positioning for efficient production.
- Exchange table: the two platforms move independently so their accuracy does not affect each other, and slag removal is more convenient; double taper pin positioning puts the table in place in one step; the worktable is driven by double motors for stable, high-speed exchange.
| Model | Processing range (mm) | X-axis travel (mm) | Y-axis travel (mm) | Z-axis travel (mm) | Laser power | X/Y axis positioning accuracy | X/Y axis repeated positioning accuracy | Max. positioning speed |
|---|---|---|---|---|---|---|---|---|
| MF-3015 | 3000*1500 | 1560 | 3080 | 250 | 3000W~120000W | ≤±0.03mm/min | ≤±0.02mm/min | 120m/min |
| MF-4015 | 4000*1500 | 1560 | 4080 | 250 | 3000W~120000W | ≤±0.03mm/min | ≤±0.02mm/min | 120m/min |
| MF-4020 | 4000*2000 | 2060 | 4080 | 250 | 3000W~120000W | ≤±0.03mm/min | ≤±0.02mm/min | 120m/min |
| MF-6020 | 6000*2500 | 2560 | 6080 | 250 | 3000W~120000W | ≤±0.03mm/min | ≤±0.02mm/min | 120m/min |
| MF-8025 | 8000*2500 | 2560 | 8080 | 250 | 3000W~120000W | ≤±0.03mm/min | ≤±0.02mm/min | 120m/min |
Options
- Dual cutting head (open-type double-drive model)
Specifications are taken from the manufacturer's catalogue and may change without notice. Please confirm with us before ordering.
