Sheet Metal Fabrication
WE67K Series Electro Hydraulic Main Servo CNC Press Brake
电液主伺服数控折弯机
Electro-hydraulic main servo CNC press brake equipped with a servo motor as standard for the main motor, realizing energy supply on demand and significantly reducing electricity expenditure.
- Equipped with a servo motor as standard for the main motor to realize energy supply on demand and significantly reduce electricity expenditure.
- The servo pump system only rotates when needed, and the comprehensive noise is reduced by 30%.
- The control mode of torque limit and analog speed is adopted to eliminate the closure and overflow of the valve and greatly reduce the oil temperature.
- Extends service life and reduces maintenance costs.
- SVP servo pump control: energy-saving, high-efficiency and stable bending (50% power saving).
- High precision, quick mold change, long-lasting stability.
Interested in this machine? Send us your requirements and we will reply with details and a quotation.
WE67K Series Electro Hydraulic Main Servo CNC Press Brake 电液主伺服数控折弯机
- SVP servo pump control (50% power saving): the oil pump motor uses a servo motor instead of a common motor to achieve real-time control of the motor speed, reduce unnecessary work of the oil pump, and realize energy-saving, high-efficiency and stable characteristics of the bending machine.
- SVP is the most cost-effective energy-saving hydraulic bending control technology.
- Optional dual servo valve control: valve control technology realizes fuel-saving, power-saving and high-speed bending production.
- The dual servo valve control system has fast and stable action, and its response speed greatly exceeds proportional valve control; the bending cycle time is 30% faster than that of the electro-hydraulic synchronous CNC bending machine, its energy consumption is only about 40%-60% of it, and it offers low noise and high efficiency.
| Model | Nominal Force (KN) | Bending Length (A) (mm) | Poles Distance (B) (mm) | Throat Depth (mm) | Slider Travel (mm) | Die Loading Height (mm) | Power (kw) | Dimension L×W×H (mm) |
|---|---|---|---|---|---|---|---|---|
| WE67K-63T/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |

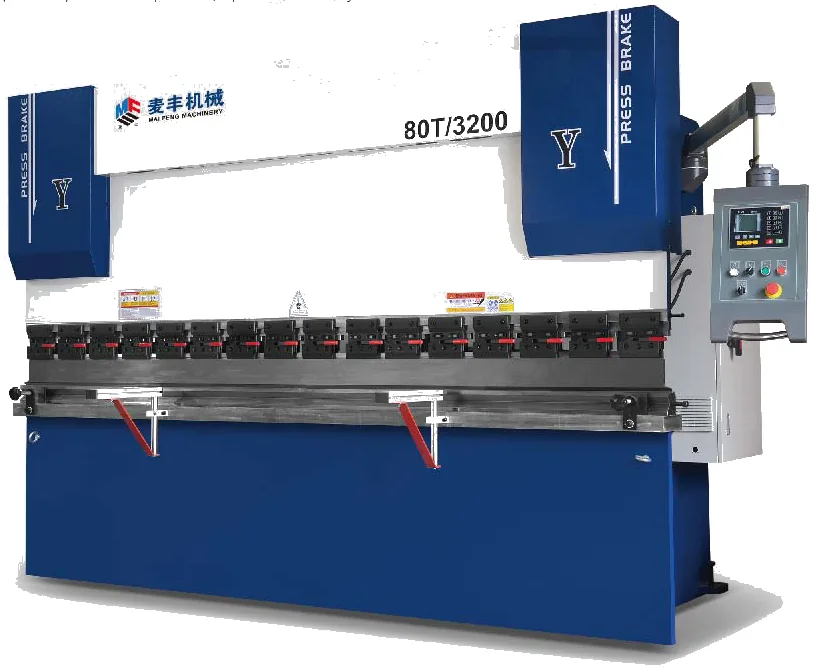

| WE67K-80T/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
| WE67K-100T/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
| WE67K-160T/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2500 |
| WE67K-200T/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
| WE67K-250T/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
| WE67K-320T/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 18.5 | 3500×1800×2730 |
| WE67K-400T/4000 | 4000 | 4000 | 3500 | 400 | 200 | 420 | 22.5 | 4300×2080×2730 |
| WE67K-500T/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2525×4600 |
| WE67K-500T/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2525×4200 |
| WE67K-500T/7000 | 5000 | 7000 | 5900 | 500 | 320 | 600 | 37 | 7500×2525×4900 |
| WE67K-600T/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2450×4500 |
| WE67K-600T/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2450×5100 |
| WE67K-600T/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2450×5200 |
| WE67K-800T/6000 | 8000 | 6000 | 4900 | 600 | 420 | 600 | 74 | 6500×2750×5300 |
| WE67K-800T/7000 | 8000 | 7000 | 5900 | 600 | 420 | 600 | 74 | 7500×2750×5500 |
| WE67K-800T/8000 | 8000 | 8000 | 5900 | 600 | 420 | 600 | 74 | 8500×2750×5900 |
| WE67K-1000T/6000 | 10000 | 6000 | 5900 | 600 | 420 | 600 | 90 | 6500×2800×5600 |
| WE67K-1000T/7000 | 10000 | 7000 | 5900 | 600 | 420 | 600 | 90 | 7500×2800×5800 |
| WE67K-1000T/8000 | 10000 | 8000 | 6900 | 600 | 420 | 600 | 90 | 8500×2800×6100 |
| WE67K-1200T/6000 | 12000 | 6000 | 4900 | 600 | 420 | 600 | 90 | 6500×3100×5850 |
| WE67K-1200T/7000 | 12000 | 7000 | 5900 | 600 | 420 | 600 | 90 | 7500×3100×6550 |
| WE67K-1200T/8000 | 12000 | 8000 | 6900 | 600 | 420 | 600 | 90 | 8500×3100×7150 |
| WE67K-1600T/6000 | 16000 | 6000 | 4900 | 500 | 320 | 600 | 110 | 6500×3300×6500 |
| WE67K-1600T/7000 | 16000 | 7000 | 5900 | 500 | 320 | 600 | 110 | 7500×3300×7000 |
| WE67K-1600T/8000 | 16000 | 8000 | 6900 | 500 | 320 | 600 | 110 | 8500×3300×8000 |
WC67K / WC67Y Series Torsion Bar NC Press Brake 扭轴数控折弯机
- A large floor-type boring and milling machine is used for integral machining of the bending machine frame.
- Torque synchronous control system: steel torsion bar synchronization with a very simple structure but very high accuracy; two synchronizing devices at the ends of the ram keep the ram movement always parallel to the worktable.
- ESTUN or DELEM brand CNC system for users to choose.
- Back gauge with ball screw and linear guide rail, driven by a servo motor, for fast and accurate material positioning.
- The stop finger height is designed for whole adjustment and can be adjusted manually.
- BOSCH-REXROTH integrated hydraulic control system limits the number of pipe connections, making it more reliable and easy to maintain.
- Standard fast clamp replaces the top punch in a very short time; the standard top punch and multi-V bottom die can bend sheet metal of various thicknesses.
- Famous brand main motor: low noise when working and long service life.
| Model (TYPE) | Nominal Force (KN) | Worktable Length (mm) | Poles Distance (mm) | Throat Depth (mm) | Slider Travel (mm) | Max Open (mm) | Power (kw) | Dimension LxWxH (mm) |
|---|---|---|---|---|---|---|---|---|
| 40t/2200 | 400 | 2200 | 1875 | 230 | 100 | 320 | 5.5 | 2200x1200x1910 |

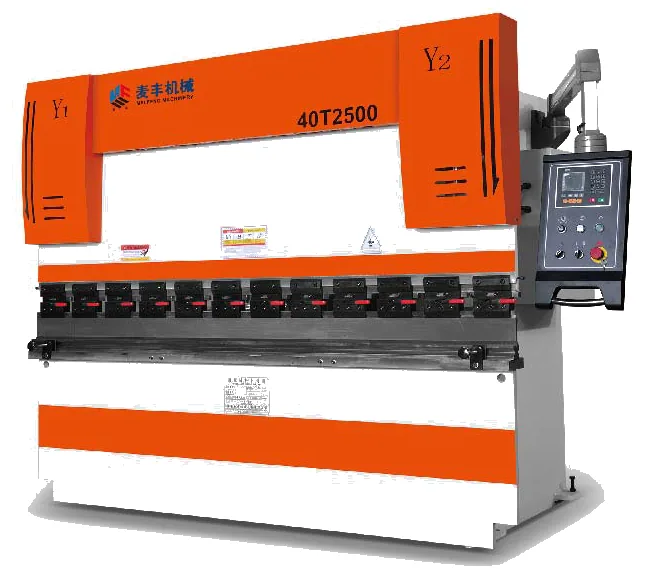

| 40t/2500 | 400 | 2500 | 1875 | 230 | 100 | 320 | 5.5 | 2500x1200x1910 |
| 50t/2500 | 500 | 2500 | 1875 | 230 | 100 | 320 | 5.5 | 2500x1210x2000 |
| 63t/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 5.5 | 2500x1300x2210 |
| 63t/3200 | 630 | 3200 | 2400 | 250 | 100 | 320 | 5.5 | 3200x1300x2210 |
| 80t/2500 | 800 | 2500 | 1900 | 300 | 100 | 320 | 7.5 | 2500x1400x2300 |
| 80t/3200 | 800 | 3200 | 2400 | 320 | 100 | 350 | 7.5 | 3200x1500x2300 |
| 80t/4000 | 800 | 4000 | 3100 | 320 | 100 | 350 | 7.5 | 4000x1500x2400 |
| 100t/2500 | 1000 | 2500 | 1900 | 320 | 120 | 320 | 7.5 | 2500x1600x2400 |
| 100t/3200 | 1000 | 3200 | 2400 | 320 | 120 | 370 | 7.5 | 3200x1600x2600 |
| 100t/4000 | 1000 | 4000 | 3100 | 320 | 120 | 370 | 7.5 | 4000x1600x2700 |
| 125t/3200 | 1250 | 3200 | 2400 | 320 | 120 | 370 | 7.5 | 3200x1600x2600 |
| 125t/4000 | 1250 | 4000 | 3050 | 320 | 120 | 370 | 7.5 | 4000x1600x2700 |
| 160t/3200 | 1600 | 3200 | 2400 | 320 | 200 | 460 | 11 | 3200x1700x2700 |
| 160t/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000x1700x2800 |
| 160t/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000x1900x3100 |
| 160t/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 6000x1900x3200 |
| 200t/3200 | 2000 | 3200 | 2600 | 320 | 200 | 460 | 11 | 3200x1950x2800 |
| 200t/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000x1950x2800 |
| 200t/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000x1950x3000 |
| 200t/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 | 6000x1950x3300 |
| 250t/3200 | 2500 | 3200 | 2500 | 400 | 250 | 590 | 18.5 | 3200x2000x3200 |
| 250t/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 4000x2000x3400 |
| 250t/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 5000x2000x3400 |
| 250t/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 6000x2000x3400 |
| 300t/3200 | 3000 | 3200 | 2530 | 400 | 250 | 590 | 22 | 3200x2000x3450 |
| 300t/4000 | 3000 | 4000 | 3470 | 400 | 250 | 590 | 22 | 4000x2000x3450 |
| 300t/5000 | 3000 | 5000 | 4000 | 400 | 250 | 590 | 22 | 5000x2000x3450 |
| 300t/6000 | 3000 | 6000 | 5000 | 400 | 250 | 590 | 22 | 6000x2000x3450 |
| 400t/4000 | 4000 | 4000 | 3000 | 400 | 250 | 590 | 30 | 4000x2180x3400 |
| 400t/5000 | 4000 | 5000 | 4000 | 400 | 250 | 590 | 30 | 5000x2180x3500 |
| 400t/6000 | 4000 | 6000 | 5000 | 400 | 250 | 590 | 30 | 6000x2180x3800 |
| 500t/5000 | 5000 | 5000 | 4000 | 400 | 250 | 590 | 45 | 5000x3500x3700 |
| 500t/6000 | 5000 | 6000 | 5000 | 400 | 320 | 590 | 45 | 6000x3500x3700 |
| 600t/4000 | 6000 | 4000 | 3000 | 400 | 320 | 590 | 55 | 4000x4500x3700 |
| 600t/6000 | 6000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6000x4500x3700 |
| 800t/6000 | 8000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6000x4500x6000 |
Options
- Dual servo valve control (WE67K)
- Quick clamping
- Movable front support system
- Grating ruler
- Mechanical crowning
- CNC follower supports
- Angle measurement
- DSP laser protection (Italy)
- WILA clamping and lower tool holders (Holland)
- CNC systems: DELEM DA-53TX / DA-58TX / DA-66T / DA-69T, ESA VIS-840 / VIS-860 / VIS-875, CYBELEC CybTouch 12 PS / 15 PS, SNC-56
- WC67K / WC67Y CNC options: ESTUN E21 / E300P, CYBELEC CT8, DELEM DA41T, TP10S, SNC-52
Specifications are taken from the manufacturer's catalogue and may change without notice. Please confirm with us before ordering.
