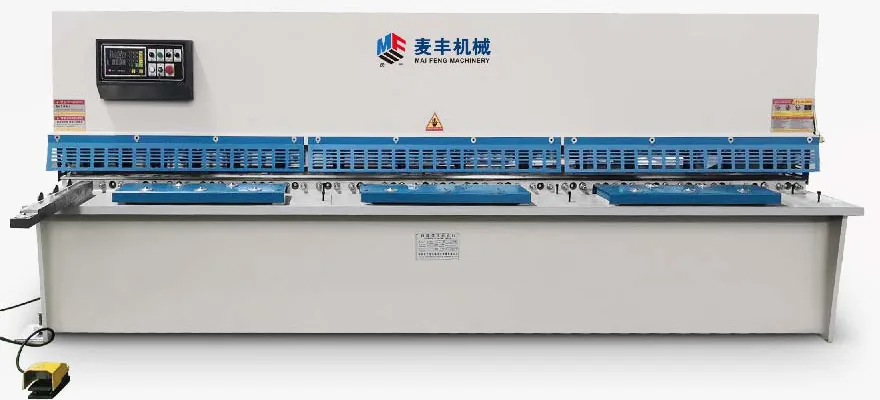

QC11K Series Hydraulic Guillotine CNC Shearing Machine
液压闸式数控剪板机
Hydraulic guillotine (QC11K series) and hydraulic swing beam (QC12K series) CNC shearing machines with CNC back gauge positioning.
- Back gauge driven by ball screw for accurate positioning.
Interested in this machine? Send us your requirements and we will reply with details and a quotation.
QC11K Series Hydraulic Guillotine CNC Shearing Machine 液压闸式数控剪板机
- Wide material adaptation.
- Integrated steel sheet welded structure with stress eliminated by vibration, giving good rigidity and stability.
- Advanced hydraulic integrated valve unit with compact structure and minimized pipe connections, improving the reliability of the system and making it easy to maintain.
- Brand hydraulic system (Rexroth, Bosch Group): hydraulic drive is smooth and reliable, effectively reducing problems caused by hydraulic oil leakage.
- Serially linked oil cylinders, so the angle of shear does not change during shearing; accumulator return is smooth and swift.
- Adjustable angle of shear to minimize distortion of the plate; manual blade gap adjustment that is accurate, rapid and convenient.
- Three point roller guide structure: a front pre-pressure guide rail keeps the tool frame against the upper and lower guide rails, and the blade clearance can be adjusted to suit different sheet materials for better shear quality.
- High precision backgauge: accurate ball screw ensures stop position precision; uniquely designed synchronous transmission, stable and reliable; motorized back gauge with position display; optional servo motor.
- Rolling material support balls minimize scuffing as well as friction resistance.
| Model (TYPE) | Cutting Thickness (mm) | Cutting Length (mm) | Cutting Angle (°) | Material Strength (KN/CM) | Travel Times (times/minute) | Stopper Adjust Range (mm) | Power (kw) | Weight (kg) | Dimension L×W×H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 6×2500 | 6 | 2500 | 0.5-1.5 | 80 | 10-35 | 600 | 7.5 | 5000 | 3000×2075×1920 |
| 6×3200 | 6 | 3200 | 0.5-1.5 | 80 | 8-30 | 600 | 7.5 | 6100 | 3130×2075×1970 |
| 6×4000 | 6 | 4000 | 0.5-1.5 | 80 | 5-20 | 600 | 7.5 | 7200 | 4530×2075×2000 |
| 6×5000 | 6 | 5000 | 0.5-1.5 | 80 | 4-15 | 600 | 11 | 10500 | 6430×2075×2520 |
| 6×6000 | 6 | 6000 | 0.5-1.5 | 80 | 3-10 | 800 | 15 | 17000 | 7530×2075×2210 |
| 6×8000 | 6 | 8000 | 0.5-1.5 | 80 | 2-6 | 800 | 22 | 32000 | 9530×2075×2600 |
| 8×2500 | 8 | 2500 | 0.5-1.5 | 80 | 8-30 | 600 | 7.5 | 5500 | 3040×2075×1920 |
| 8×3200 | 8 | 3200 | 0.5-1.5 | 80 | 6-25 | 600 | 7.5 | 7000 | 3740×2075×1920 |
| 12×2500 | 12 | 2500 | 0.5-2 | 80 | 5-20 | 600 | 15 | 9000 | 3110×2575×2210 |
| 12×3200 | 12 | 3200 | 0.5-2 | 80 | 4-16 | 600 | 15 | 10500 | 3810×2575×2500 |
| 12×4000 | 12 | 4000 | 0.5-2 | 80 | 3-12 | 600 | 18.5 | 12600 | 4610×2575×2500 |
| 16×2500 | 16 | 2500 | 0.5-2.6 | 80 | 6-20 | 600 | 18.5 | 10500 | 3130×2655×2200 |
| 16×4000 | 16 | 4000 | 0.5-5.5 | 80 | 4-12 | 600 | 18.5 | 15000 | 4430×2655×2570 |
| 20×2500 | 20 | 2500 | 0.5-2.6 | 80 | 6-15 | 800 | 30 | 13500 | 3100×2600×2300 |
| 20×4000 | 20 | 4000 | 0.5-5.5 | 80 | 4-12 | 800 | 30 | 19000 | 4600×2055×2720 |
| 25×3200 | 25 | 3200 | 0.5-3.5 | 80 | 4-10 | 800 | 37 | 20000 | 3610×2000×3300 |
QC12K Series Hydraulic Swing Beam CNC Shearing Machine 液压摆式数控剪板机
- High shear accuracy and smooth cut surface.
- The host adopts the QC12K series model with an economical special numerical control system; the back gauge (post-block) position is displayed in real time.
- Multi-step programming function: after automatic operation and continuous positioning of the material, the back gauge position is adjusted automatically and accurately.
- Shearing count function shows the number of cuts in real time.
- The back gauge uses an imported ball screw to ensure the positioning accuracy of the rear retaining material, giving higher machining precision.
- Blade gap adjustment: the right blade clearance gives a satisfactory shear effect; a quick blade clearance adjusting mechanism meets the needs of different plate thicknesses and materials and is adjusted by rotating the handwheel.
- Domestic famous brand motor: low noise during working and longer service life.
- Hydraulic valve: system pressure control adopts an electro-hydraulic proportional pressure valve, and the whole-process pressure can be programmed and controlled to ensure stable and reliable machine performance.
- Good quality blades made of alloy tool steel to meet shear impact loading and high abrasion resistance requirements.
| Model (TYPE) | Cutting Thickness (mm) | Cutting Length (mm) | Cutting Angle (°) | Material Strength (KN/CM) | Stopper Adjust Range | Travel Times (次/分, strokes/min) | Power (kw) | Dimension L×W×H (mm) |
|---|---|---|---|---|---|---|---|---|
| 4*2500 | 4 | 2500 | 1° 30' | 450 | 20-500 | 28 | 4.0 | 3000*1450*1750 |
| 4*3200 | 4 | 3200 | 1° 30' | 450 | 20-600 | 24 | 5.5 | 3700*1550*1850 |
| 4*4000 | 4 | 4000 | 1° 15' | 450 | 20-600 | 18 | 5.5 | 4500*1550*1850 |
| 4*6000 | 4 | 6000 | 1° 30' | 450 | 20-600 | 13 | 7.5 | 6400*2000*1900 |
| 6*2500 | 6 | 2500 | 1° 30' | 450 | 20-600 | 18 | 7.5 | 3000*1550*1850 |
| 6*3200 | 6 | 3200 | 1° 30' | 450 | 20-600 | 14 | 7.5 | 3700*1650*1850 |
| 6*4000 | 6 | 4000 | 1° 30' | 450 | 20-600 | 12 | 7.5 | 4500*1650*1850 |
| 6*6000 | 6 | 6000 | 1° 30' | 450 | 20-600 | 10 | 11 | 6400*2100*1900 |
| 8*2500 | 8 | 2500 | 1° 45' | 450 | 20-600 | 14 | 11 | 3000*1600*1850 |
| 8*3200 | 8 | 3200 | 1° 45' | 450 | 20-600 | 10 | 11 | 3700*1700*1900 |
| 8*4000 | 8 | 4000 | 1° 45' | 450 | 20-600 | 8 | 11 | 4500*1700*1900 |
| 8*6000 | 8 | 6000 | 1° 45' | 450 | 20-600 | 8 | 11 | 6400*2200*2100 |
| 10*2500 | 10 | 2500 | 1° 45' | 450 | 20-600 | 10 | 11 | 3000*1600*1850 |
| 10*3200 | 10 | 3200 | 1° 45' | 450 | 20-600 | 10 | 11 | 3700*1700*1900 |
| 10*4000 | 10 | 4000 | 1° 45' | 450 | 20-600 | 10 | 11 | 4500*1700*1900 |
| 10*6000 | 10 | 6000 | 1° 45' | 450 | 20-600 | 10 | 15 | 6400*2200*2100 |
| 12*2500 | 12 | 2500 | 2° 20' | 450 | 20-800 | 12 | 18.5 | 3100*2050*1950 |
| 12*3200 | 12 | 3200 | 2° | 450 | 20-800 | 10 | 22 | 3800*2250*1950 |
| 12*4000 | 12 | 4000 | 2° | 450 | 20-800 | 8 | 22 | 4600*2250*1950 |
| 12*5000 | 12 | 5000 | 2° | 450 | 20-800 | 6 | 30 | 5600*2400*2700 |
| 12*6000 | 12 | 6000 | 2° | 450 | 20-800 | 5 | 30 | 6600*2600*2700 |
| 16*2500 | 16 | 2500 | 2° 20' | 450 | 20-800 | 10 | 22 | 3100*2150*2050 |
| 16*3200 | 16 | 3200 | 2° | 450 | 20-800 | 10 | 22 | 3800*2250*2050 |
| 16*4000 | 16 | 4000 | 2° | 450 | 20-800 | 8 | 22 | 4600*2250*2050 |
| 16*5000 | 16 | 5000 | 2° | 450 | 20-1000 | 6 | 30 | 5600*2400*2700 |
| 16*6000 | 16 | 6000 | 2° | 450 | 20-1000 | 5 | 30 | 6600*2600*2700 |
| 20*2500 | 20 | 2500 | 2° 30' | 450 | 20-1000 | 8 | 30 | 3200*2150*2050 |
| 20*3200 | 20 | 3200 | 3° | 450 | 20-1000 | 8 | 30 | 4150*2350*2350 |
| 20*4000 | 20 | 4000 | 3° | 450 | 20-1000 | 6 | 30 | 4600*2600*2400 |
| 20*6000 | 20 | 6000 | 3° | 450 | 20-1000 | 4 | 37 | 6600*2800*2900 |
| 25*2500 | 25 | 2500 | 3° | 450 | 20-1000 | 8 | 37 | 3200*2150*2050 |
| 25*3200 | 25 | 3200 | 3° | 450 | 20-1000 | 6 | 37 | 4150*2350*2350 |
| 25*4000 | 25 | 4000 | 3° | 450 | 20-1000 | 4 | 37 | 4600*2600*2400 |
| 30*2500 | 30 | 2500 | 3° | 450 | 20-1000 | 4 | 37 | 3300*2600*2400 |
| 30*3200 | 30 | 3200 | 3° | 450 | 20-1000 | 4 | 37 | 4200*3000*2800 |
| 40*2500 | 40 | 2500 | 4° | 450 | 20-1000 | 4 | 75 | 3300*3200*2800 |
| 40*3200 | 40 | 3200 | 4° | 450 | 20-1000 | 3 | 90 | 4200*3200*3000 |
Options
- Angle protractor positioning device
- Pneumatic sheet support system
- SICK light barrier
- Servo motor back gauge
- QC11K CNC options: ESTUN E21S, DELEM DAC 360T, E30, CybTouch 8 G
- QC12K CNC options: MD11, DELEM DAC 360T, E30, CybTouch 8 G
Specifications are taken from the manufacturer's catalogue and may change without notice. Please confirm with us before ordering.
